China Suppliers Factory for Patterned Conveyor Belts: Magic Carpet, Concave & Convex Designs

Magic Carpet Patterned Conveyor Belt
The magic carpet patterned conveyor belt is a specially designed conveyor system featuring unique patterns on its surface. This type of conveyor belt is ideal for transporting people or items and is commonly used in ski resorts, amusement parks, and various other venues. As a leading China supplier and manufacturer, our factory ensures high-quality production and durability for all your conveying needs.

Concave Pattern Conveyor Belt
Our concave pattern conveyor belt is engineered with concave designs on its surface, significantly enhancing its conveying performance. This innovative design is perfect for smooth transportation in various industrial applications. Trust our China factory to deliver reliable and efficient conveyor solutions tailored to your requirements.

Convex Pattern Conveyor Belt
The convex pattern conveyor belt features raised patterns that improve its conveying efficiency through specialized design. Ideal for a range of applications, this belt provides superior grip and performance. As a prominent China supplier and factory, we guarantee that our products meet the highest standards of quality and reliability.

Send Inquiry

Product Description

🎿 Magic Carpet Patterned Conveyor Belt

Carpet patterned conveyor belt is a type of conveyor belt with special patterns on its surface, used for transporting people or items, and widely used in ski resorts, amusement parks, and other places.

⚙️ Structure

Usually composed of a belt, skeleton layer, and patterned layer. The belt body is made of high-quality rubber or other wear-resistant materials; the skeleton layer is generally made of Kevlar wire or EP skeleton, providing strong tensile strength; the surface patterns are specially designed to be uneven in order to increase friction.

⚡ Performance

It has excellent anti-slip performance, wear resistance, durability, and low temperature resistance, and can operate stably in harsh environments. Some magic carpet patterned conveyor belts also have good aging resistance, water resistance, UV resistance and other properties, with a long service life.

🔄 Working Principle

The belt or chain is driven by a motor and runs smoothly under the support of a drum, transporting tourists or items from low to high.

📍 Applications

Mainly used in ski resorts to transport skiers from the bottom to the top of the ski slope; it can also be used for sightseeing corridors in amusement parks, transporting kayaks, and other scenes, making it convenient for tourists to quickly reach designated locations.

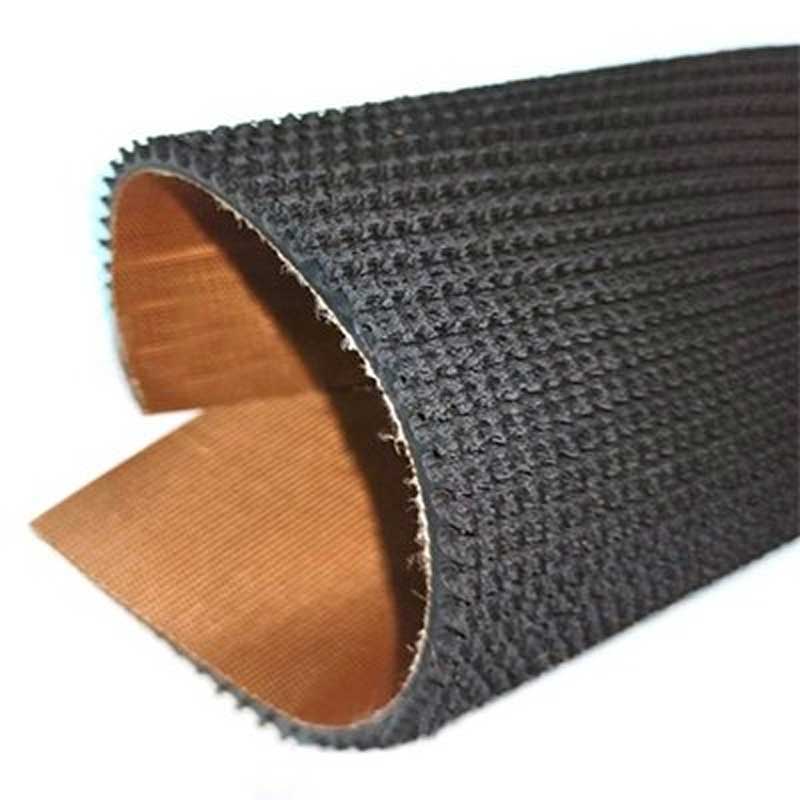

🔵 Concave Pattern Conveyor Belt

Concave pattern conveyor belt is a conveyor belt with concave patterns on its surface, which enhances its conveying performance through special pattern design.

🎨 Pattern Types

Common ones include concave herringbone patterns and pit-shaped granular patterns. The concave herringbone pattern is shaped like a "human" and can effectively prevent material sliding. The pit-shaped granular pattern is a granular pit embedded in the belt, which can be made into square holes, edges, etc., suitable for conveying granular materials with an inclination angle of ≤ 45 degrees.

⚡ Performance

The concave pattern design increases the friction between the conveyor belt and the material, making it less likely for the material to slip during transportation, especially suitable for inclined conveying. Concave patterns can also disperse pressure, reduce surface wear of the conveyor belt, and extend its service life. Some concave patterned conveyor belts also have good wear resistance, acid and alkali resistance, and heat resistance.

📍 Applications

Widely used in fertilizer plants, coal yards, grain transportation and other scenarios. It can also be used in industries such as mining, ports, and building materials to transport powdered, granular, and small block materials.

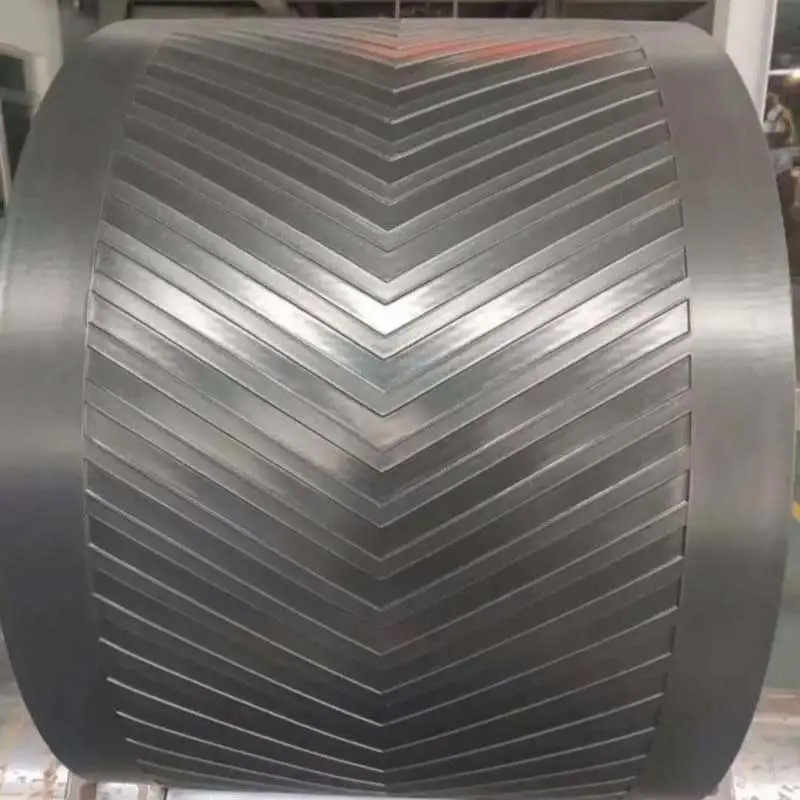

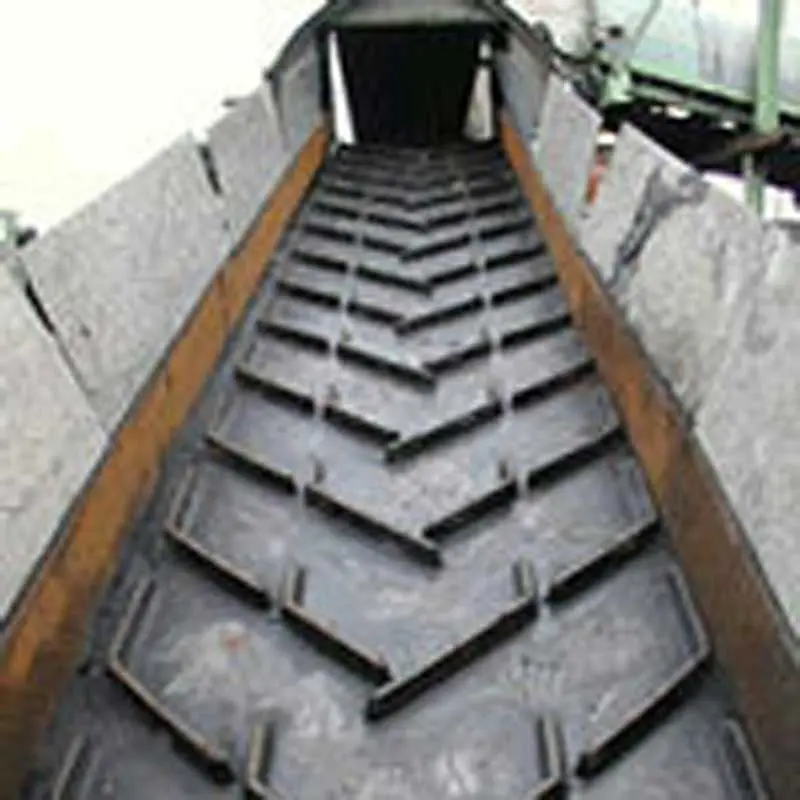

🔶 Convex Pattern Conveyor Belt

Convex pattern conveyor belt is a conveyor belt with raised patterns on its surface, which enhances its conveying performance through special pattern design.

🎨 Pattern Types

Common ones include herringbone patterns, fishbone patterns, U-shaped patterns, and cylindrical patterns.

⚡ Performance

The convex pattern increases the friction between the conveyor belt and the material, effectively preventing the material from sliding during the conveying process, and is suitable for conveying scenarios with large inclination angles. The pattern and base are formed by one-time vulcanization, which provides good wear resistance and durability.

📏 Specifications

The bandwidth is generally 300mm–2200mm, with multiple options for pattern height such as 5mm, 10mm, 15mm, etc. Pattern spacing is available in specifications such as 125mm, 200mm, 250mm, etc.

📍 Applications

Widely used in industries such as mining, ports, grain, and construction. It can transport various bulk and bagged materials such as ore, coal, sand, cement, and more.

❓ Frequently Asked Questions

Q What is a patterned conveyor belt and what are its main types?

A patterned conveyor belt is a conveyor belt with specially designed surface patterns — either raised (convex) or recessed (concave) — to enhance friction and material-holding capacity. The three main types are magic carpet patterned, concave patterned, and convex patterned conveyor belts, each suited for different applications and inclination angles.

Q What are magic carpet patterned conveyor belts used for?

Magic carpet patterned conveyor belts are primarily used in ski resorts to transport skiers uphill, as well as in amusement parks for sightseeing corridors and kayak transport. Their anti-slip surface and low-temperature resistance make them ideal for cold, outdoor environments.

Q How does a concave pattern conveyor belt differ from a convex pattern one?

A concave pattern conveyor belt features recessed patterns (such as pits or grooves) on its surface, which help hold granular materials in place, making it ideal for inclines up to 45°. A convex pattern conveyor belt features raised patterns (such as herringbone or fishbone), which grip material from beneath and are better suited for steeper inclination angles in heavy-duty industrial use.

Q What industries commonly use convex pattern conveyor belts?

Convex pattern conveyor belts are widely used in mining, ports, grain handling, and construction industries. They are capable of transporting bulk and bagged materials such as ore, coal, sand, and cement efficiently, even on steep inclines.

Q What materials are used to manufacture patterned conveyor belts?

Patterned conveyor belts are typically made from high-quality rubber or other wear-resistant materials for the belt body. The skeleton layer may consist of Kevlar wire or EP (polyester-nylon) fabric to provide tensile strength. The patterns are formed through vulcanization, ensuring durability and strong adhesion between the pattern layer and the base belt.

Q What are the standard specification ranges for convex pattern conveyor belts?

Convex pattern conveyor belts generally come in bandwidths ranging from 300mm to 2200mm. Pattern heights are available in options such as 5mm, 10mm, and 15mm, while pattern spacing can be selected from specifications including 125mm, 200mm, and 250mm, allowing customization for various material types and conveying conditions.
