Product Introduction
Nylon core conveyor belts have the characteristics of thin belt body, high strength, impact resistance, good performance, high interlayer adhesive strength, excellent flexibility, and long service life. They are suitable for conveying materials under medium to long distance, high load and high-speed conditions. Nylon conveyor belts not only have these advantages, but most importantly, they are fast and convenient, greatly improving work efficiency and completeness.
🛠️
By Adhesive Type
Cold resistant · Acid resistant · Alkali resistant · Oil resistant · Wear-resistant
🎯
By Purpose
Lifting belts · Power belts · Conveyor belts
🏗️
By Structure

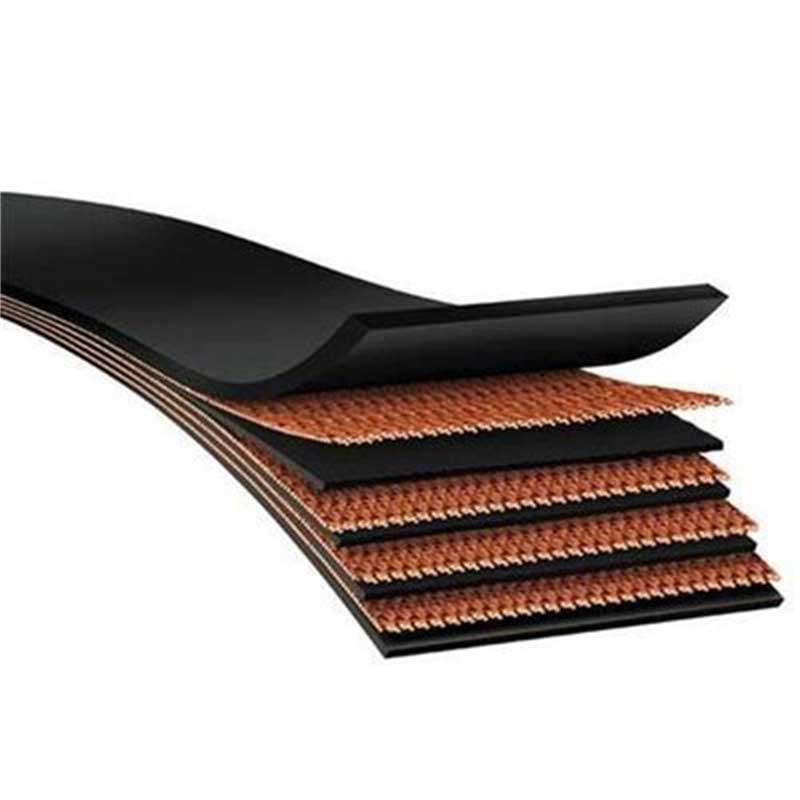

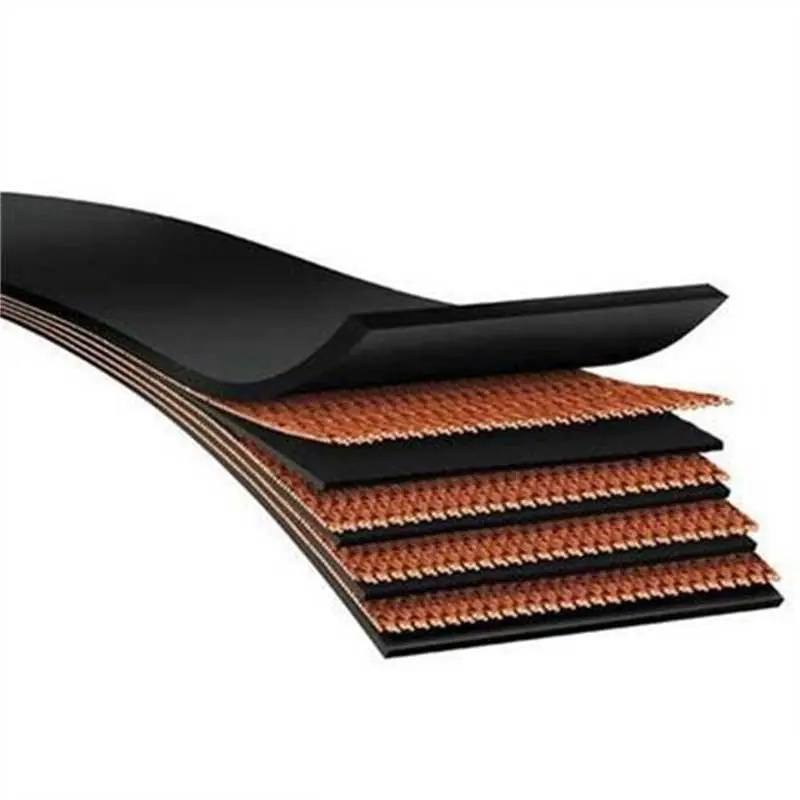

Ordinary laminated · Impact resistant with lateral reinforcement · Tear resistant
Core materials: NN100, NN150, NN200, NN300, NN400, NN500
Bandwidth: 100mm – 3000mm
Fabric layer: 1–10 layers
Cover adhesive — Working surface: 1.5–8mm | Non-working surface: 0–4.5mm
Core materials: NN100, NN150, NN200, NN250, NN300, NN350, NN400, NN450, NN500
Bandwidth: 100mm – 3000mm
Fabric layer: 1–10 layers
Cover adhesive — Working surface: 1.5–8.0mm | Non-working surface: 1.5–4.5mm
Frequently Asked Questions
Q
What are the main advantages of nylon core conveyor belts?
Nylon core conveyor belts feature a thin yet high-strength belt body, excellent impact resistance, superior interlayer adhesion, outstanding flexibility, and a long service life. They are especially well-suited for medium to long distance, high-load, and high-speed material conveying applications, significantly improving operational efficiency.
Q
What core material grades are available for nylon conveyor belts?
Available grades include NN100, NN150, NN200, NN250, NN300, NN350, NN400, NN450, and NN500 — offering a comprehensive range of tensile strength options to match specific load and application requirements.
Q
Can nylon conveyor belts be used in corrosive or chemically aggressive environments?
Yes. By selecting the appropriate covering adhesive formulation, nylon conveyor belts can be configured for cold-resistant, acid-resistant, alkali-resistant, oil-resistant, or wear-resistant service, making them adaptable to a wide range of demanding industrial environments.
Q
What bandwidth and fabric layer options are offered?
Nylon conveyor belts are available in bandwidths from 100mm to 3000mm with 1 to 10 fabric layers. Cover adhesive thickness on the working surface ranges from 1.5mm to 8.0mm, and on the non-working surface from 0mm to 4.5mm, supporting diverse installation and load requirements.
Q
What quality and performance standards do these belts comply with?
These belts comply with Chinese national standard GB/T7984-2001. Key performance benchmarks include a cover layer tensile strength ≥ 15 MPa, elongation at break ≥ 350%, wear amount ≤ 200mm³, and interlayer bonding strength ≥ 4.5 N/mm between fabric layers and ≥ 3.2 N/mm between covering adhesive and fabric layers.
Q
What structural types and edge configurations are available?
Three main structural types are offered: ordinary laminated type for general use, impact-resistant type with a lateral reinforcement layer for heavy-impact conditions, and tear-resistant type for abrasive material handling. Edge configurations include edge wrapped, open edge, middle ladder, and edge ladder to match varied operational needs.
